उत्पाद विवरण
Place of Origin: China
ब्रांड नाम: JEFFER
प्रमाणन: ISO9001,ISO14001,ISO45001
Model Number: Customization
भुगतान और शिपिंग शर्तें
Minimum Order Quantity: 1 Set
मूल्य: विनिमय योग्य
Packaging Details: Wooden Case, Tray, Steel Frame, Etc
Delivery Time: 180 Days After Receiving the Down Payment
Payment Terms: T/T, L/C
Supply Ability: 1 Set per 6 Months
Dimension: |
Customized |
Condition: |
New |
Application: |
Glass Industry |
Voltage: |
380V |
Pproduct: |
Glass |
Color: |
Customized |
Fuel Type: |
Heavy Oil |
Warranty: |
One Year |
Type: |
Cross fired furnace |
After-sales Service: |
Engineering Overseas Service Available |
Dimension: |
Customized |
Condition: |
New |
Application: |
Glass Industry |
Voltage: |
380V |
Pproduct: |
Glass |
Color: |
Customized |
Fuel Type: |
Heavy Oil |
Warranty: |
One Year |
Type: |
Cross fired furnace |
After-sales Service: |
Engineering Overseas Service Available |

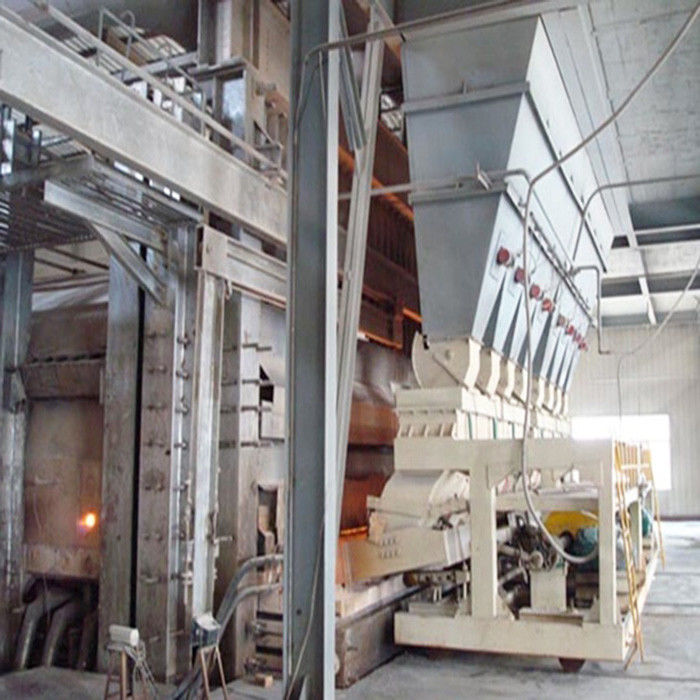

120Tpd Customized Cross Fired Furnace Refractory Material Glass Melting Furnace
1. Brief Introduction
Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.
The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.
The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.
Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.
2. Feature
| 1 | High productivity |
| 2 | Longitudinal temperature adjustable |
3. Structure of furance
| 1 | Melting section |
| 2 | Breast wall |
| 3 | Crown |
| 4 | Port |
| 5 | Regenerator |
| 6 | Cooling section |
| 7 | Flue channel |
| 8 | Double deck reversing unit |
| 9 | Waste heat treatment system |
4. Main component
The melting tank is combined with melting area and clearing area.
The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.
It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the
waste gas out.
